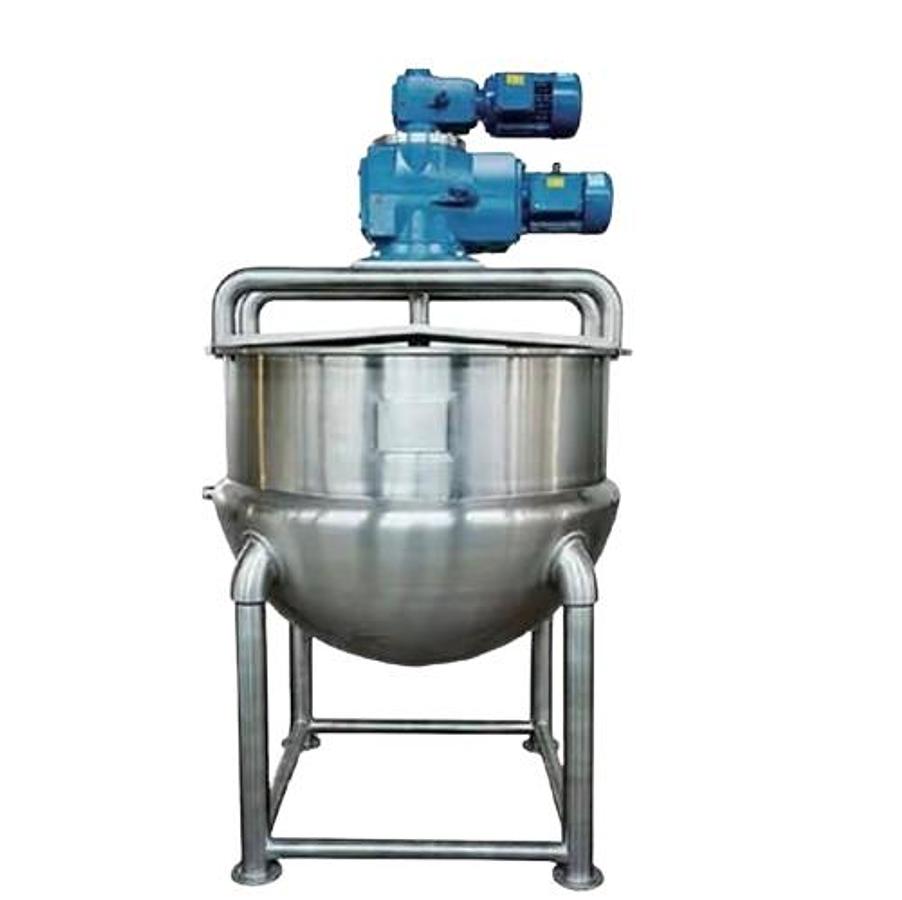

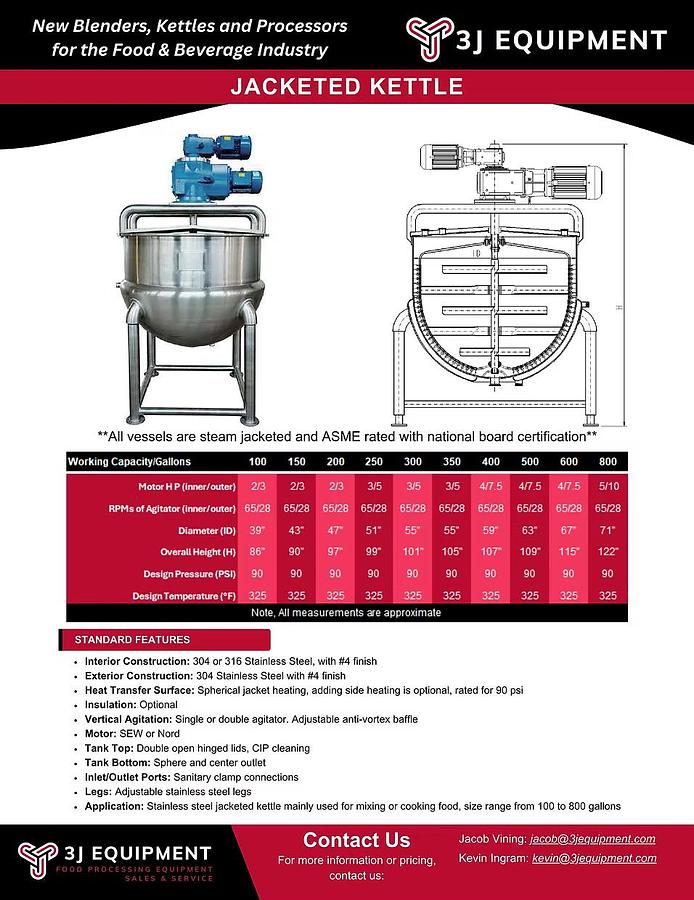

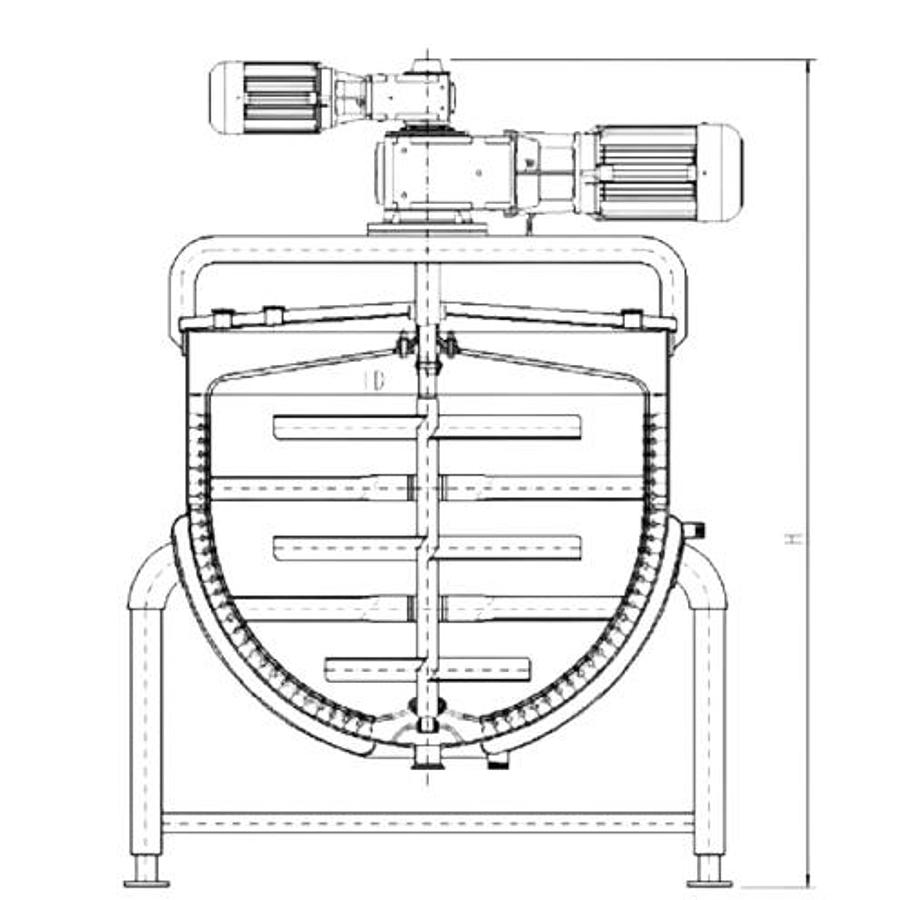

Jacketed Kettle

**All vessels are steam jacketed and ASME rated with national board certification**

STANDARD FEATURES

• Interior Construction: 304 or 316 Stainless Steel, with #4 finish

• Exterior Construction: 304 Stainless Steel with #4 finish

• Heat Transfer Surface: Spherical jacket heating, adding side heating is optional, rated for 90 psi

• Insulation: Optional

• Vertical Agitation: Single or double agitator. Adjustable anti-vortex baffle

• Motor: SEW or Nord

• Tank Top: Double open hinged lids, CIP cleaning

• Tank Bottom: Sphere and center outlet

• Inlet/Outlet Ports: Sanitary clamp connections

• Legs: Adjustable stainless steel legs

Application: Stainless steel jacketed kettle mainly used for mixing or cooking food, size range from 100 to 800 gallons
