Ribbon Blender

Standard Features

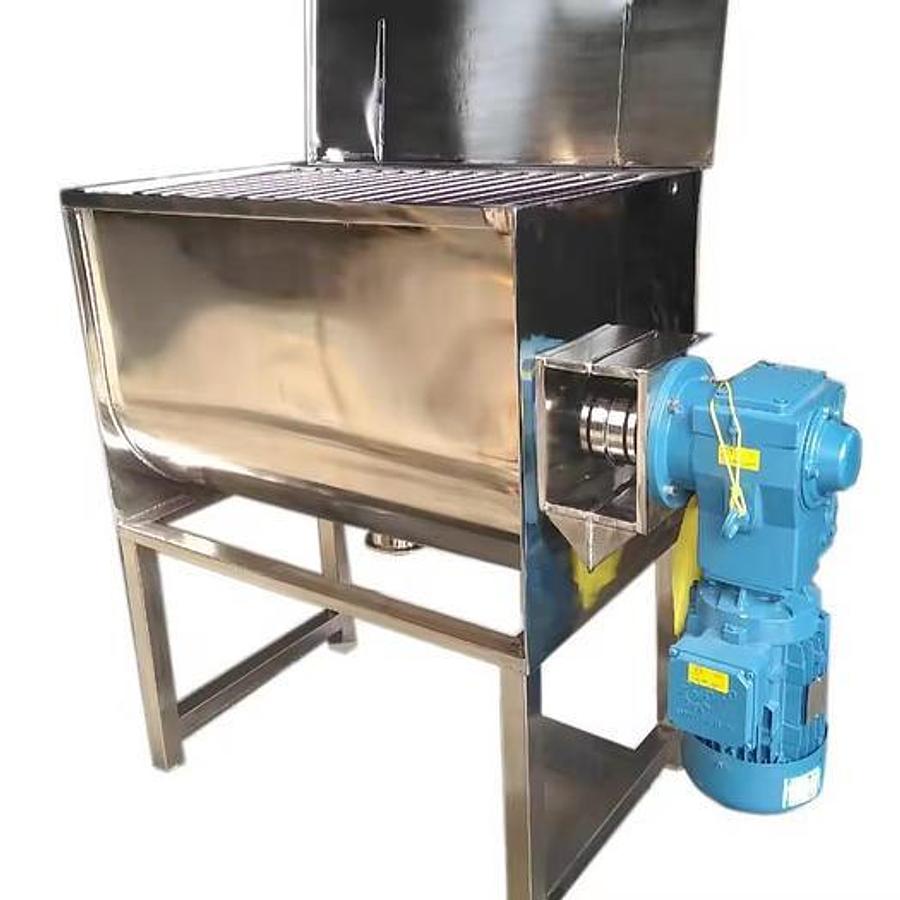

Advantages: Direct type reducer drive, safety grates, stainless steel solid shafts, split ring seals, air purge, safety limit switches (prevents operation when grates are raised).

The Usage of Products

The ribbon blender is widely used in food, medicine, chemical, plastic, material mixing production dyes and cosmetic industries. For solid solid (powder and powder) mixed solid liquid (powder and liquid) mixed. Especially suitable for viscous or agglomerate mixed powder material the material, adding more liquid and powder material (or paste material) mixed. The machine has the advantages of fast mixing speed, high precision, no mixed blind, filling coefficient, smooth operation, sealing operation, no environmental pollution, the material quickly,clean, without leaving the remaining material, use, maintenance, repair convenience etc.

Working Principle

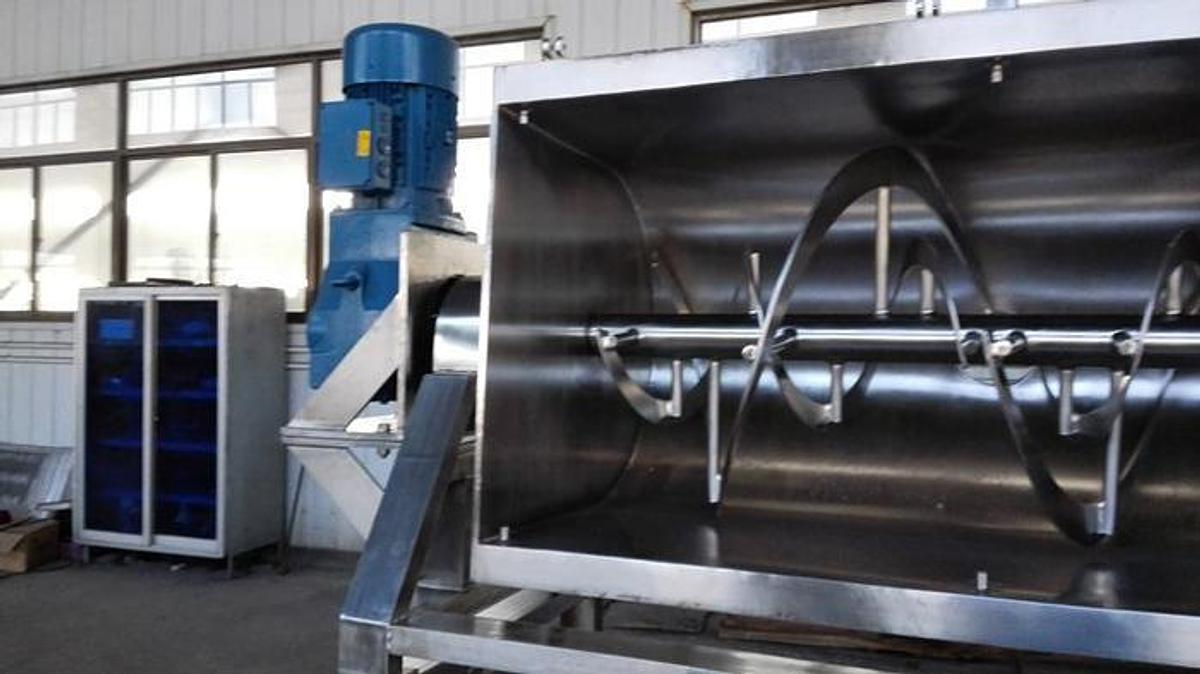

Driven by adirect reducer, the rotor of the mixer rotates in orientation. In the process of rotation, the screw belt pushes the material along the axis on the one handand throws the material over the front of the belt on the other. The outer spiral belt makes the material always move to the middle of the cylinder, and the inner spiral belt makes the material move from the middle to the two ends,so the material forms two circulation logistics in the movement, and in the process of repeated circulation flow. The material is fully mixed.

Structural Characteristics

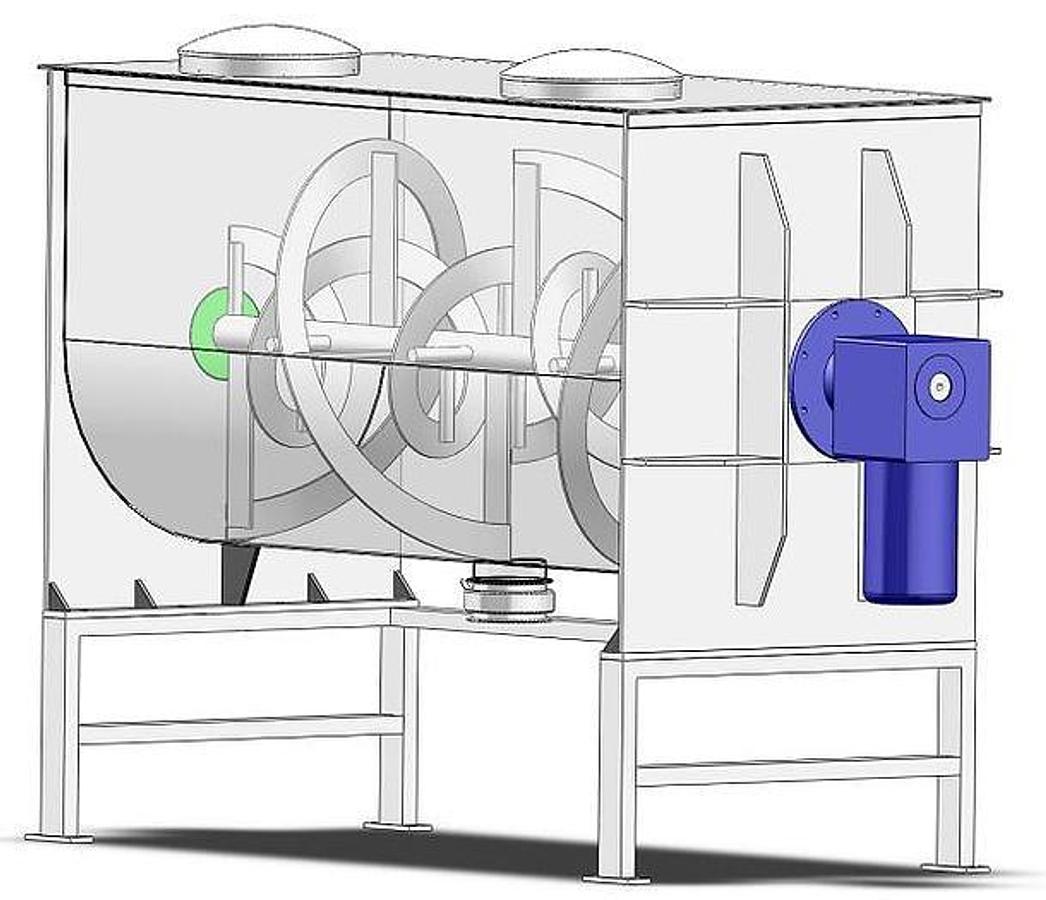

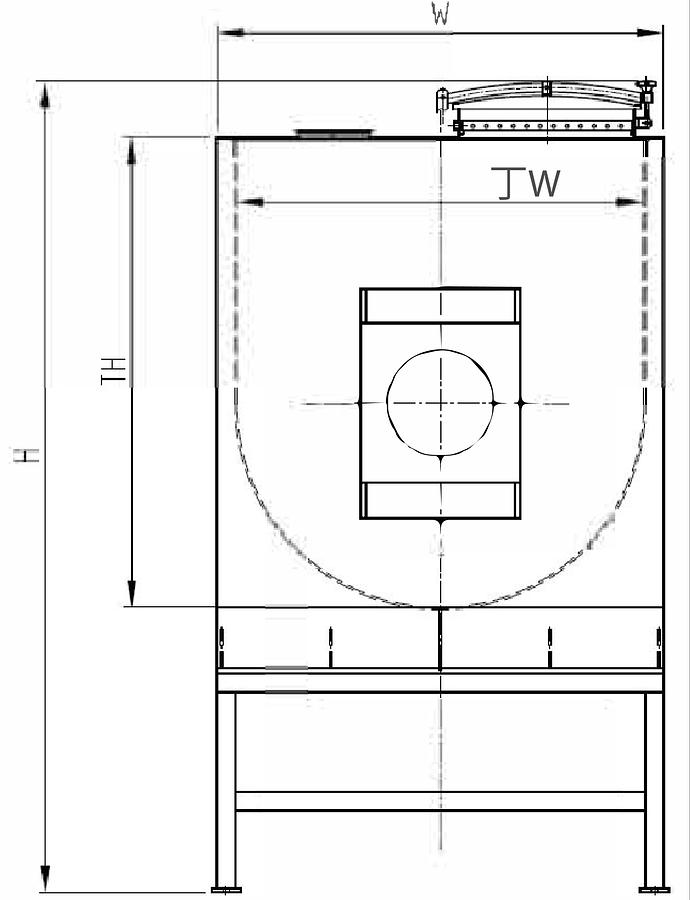

The horizontal screw belt mixer is composed of transmission parts,double layer screw belt agitator and U shaped cylinder. The top cover isprovided with a feed port and a repair port, and can also be formulated according to the requirements of the user and sprayed with liquid addition device. Non-standard clamping sleeve. Discharge devices are installed in the center of the bottom of the cylinder (discharge devices are manual and pneumatic, generally standard for manual discharge).

Motor?SEW/NORD Drive

Material?304 or 316 Stainless Steel

Finish?High-polished sanitary finish

Legs?Adjustable stainless steel legs
